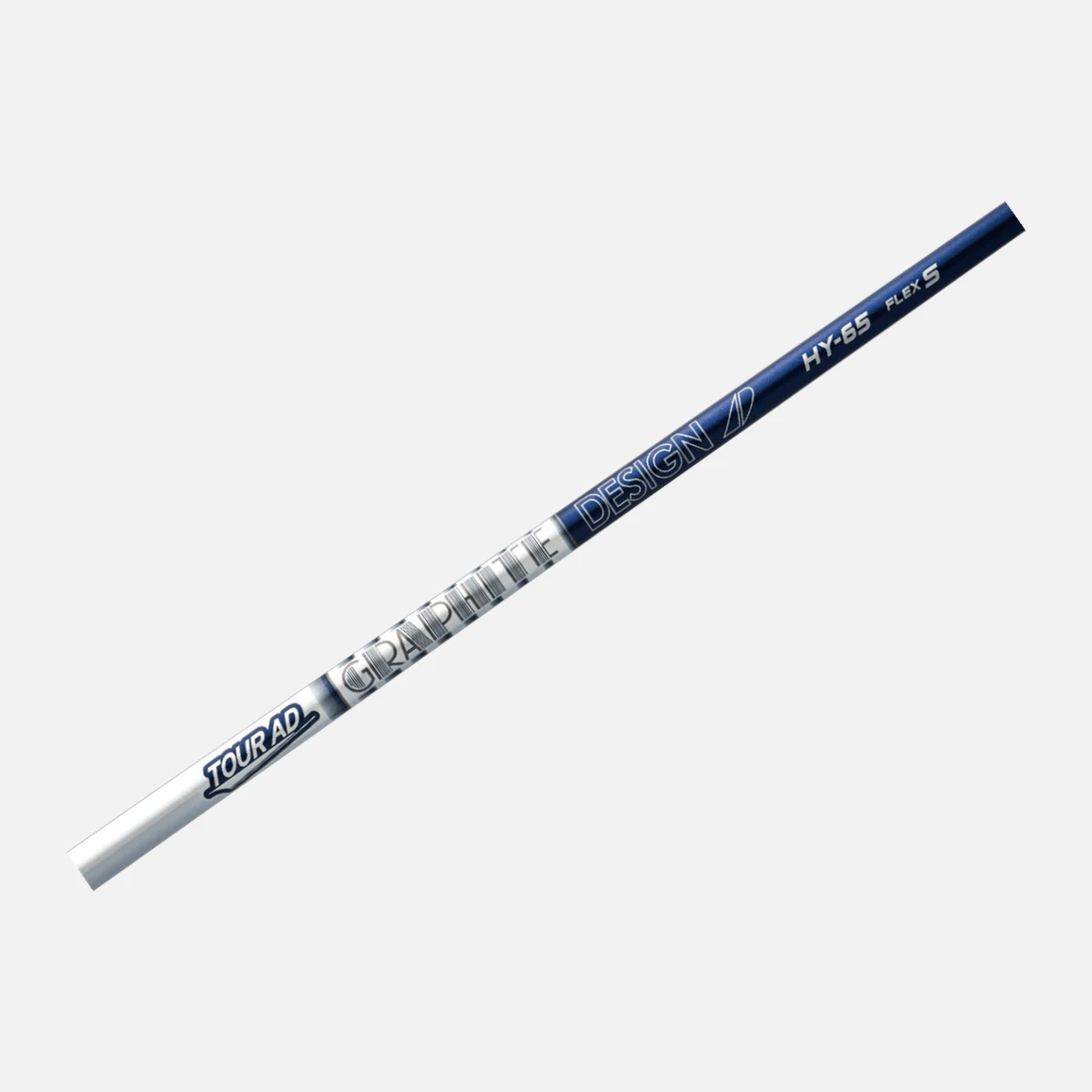

Tour AD HY
Designed to promote Mid to Mid/High launch angles with Mid ball spin rates.
Shaft type: Graphite hybrid shaft
Designed and manufactured at the Graphite Design Japan factory headquarters the Tour AD HY hybrid shafts are available in four weights: 65g and 75g in R and S flex, 85g in R, S, and X flex, and 95g in S and X flex.
Designed with the Tour AD DI Hybrid profile in mind, the Tour AD HY hybrid is softer in the tip and mid-section and slightly stiffer in the butt section of the shaft, to promote a higher ball flight than the Tour AD DI Hybrid shafts. The easy-to-hit Tour AD HY hybrid shafts can be counted on to deliver pinpoint Accuracy and greater Distance, which is synonymous with all the Graphite Design Tour AD shafts.
Features & Technology
- High modulus, premium, aerospace quality carbon fiber materials.
- Graphite Design proprietary Material Stiffness Integration (MSI) design philosophy and technology.
Performance
- Designed to promote Mid to Mid/High launch angles with Mid ball spin rates.
Installation notes
- Always leave a minimum of 0.5″ of the parallel tip section of the shaft above the hosel to maintain shaft durability and prevent shaft failure/breakage. For example, if the head has a hosel bore depth of 1.5″ and the shaft has a parallel tip length of 3.0″, the tip trim length should not exceed 1.0
Images and information from Pro’s Choice (proschoicegolfshafts.com – Graphite Design distributor, USA). Contact LionGolf for shaft fitting advice and availability.
Specifications
| Flex | R, S, X |
|---|---|
| Weight | 67 – 98 g |
| Tip size | 0.370 inch |
Bend profile
| Shaft | Butt section | Mid section | Tip section |
|---|---|---|---|
| Tour AD HY | Medium | Medium | Medium |
Fitting – swing speed & flex
| Swing speed | Flex |
|---|---|
| 86–95 MPH | R (Regular) |
| 96–105 MPH | S (Stiff) |
| 105+ MPH | X (X-Stiff) |
Tip trimming (standard bore)
| Club | Tip trim |
|---|---|
| Loft 15°–18° | 0″ |
| Loft 19°–22° | 0.5″ |
| Loft 23°–26° | 1.0″ |
| Loft 27°+ | 1.0″ |
Specifications
| Shaft type | Part number | Flex | Length | Weight | Tip OD | Tip parallel | Butt OD | Torque | Kick point | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TOUR AD HY 65 R | ADHYHB65-R | Regular | 42″ | 67g | .370″ | 3.0″ | .600″ | 3.5 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 65 S | ADHYHB65-S | Stiff | 42″ | 67g | .370″ | 3.0″ | .600″ | 3.5 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 75 R | ADHYHB75-R | Regular | 42″ | 77g | .370″ | 3.0″ | .596″ | 3.1 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 75 S | ADHYHB75-S | Stiff | 42″ | 78g | .370″ | 3.0″ | .598″ | 3.1 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 85 R | ADHYHB85-R | Regular | 42″ | 88g | .370″ | 3.0″ | .600″ | 2.4 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 85 S | ADHYHB85-S | Stiff | 42″ | 88g | .370″ | 3.0″ | .600″ | 2.4 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 85 X | ADHYHB85-X | X-Stiff | 42″ | 89g | .370″ | 3.0″ | .602″ | 2.4 | MID | MID | MID |
| TOUR AD HY 95 S | ADHYHB95-S | Stiff | 42″ | 97g | .370″ | 3.0″ | .596″ | 2.1 | LOW/MID | MID/HIGH | MID |
| TOUR AD HY 95 X | ADHYHB95-X | X-Stiff | 42″ | 98g | .370″ | 3.0″ | .598″ | 2.1 | MID | MID | MID |
Source: proschoicegolfshafts.com (Graphite Design distributor, USA).
